Tool Inspection System with 1 Year Warranty Customized Support and Wooden Case Packaging Vision Measurement Machine

기본 정보

원래 장소:	광동, 중국
브랜드 이름:	UNIMETRO
모델 번호:	레인저 600

최소 주문 수량:	1
가격:	$22,000

최고의 가격 지금 연락

상세 정보

X 축 이동:	80mm	Y 축 이동:	60mm
404:	60mm	최대 도구 직경:	50mm
최대 도구 길이:	300mm	작업 거리:	90mm
렌즈 유형:	0.7-4.5X 패어진 줌 렌즈	카메라 해상도:	2m 픽셀 HD 카메라/5m 픽셀 HD 카메라 (선택 사항)
선형 스케일 해상도:	0.0001 밀리미터	배율 범위:	12.6x ~ 79.2x/25.2x ~ 158.4x (선택 사항)
시야의 분야:	2720mm ~ 4.33.3mm/13.510mm ~ 2.31.6mm (선택 사항)	정확도 측정:	x ~ y, (2.5+l/100) µm, l은 측정 된 길이입니다
PC 시스템:	올인원 PC 시스템, Windows 10 OS, 24 "LCD 모니터	조광 시스템:	8 섹션 LED 링 라이트, 윤곽선, 유연한 보조 조명
로타리 단계 각도:	0도 및 90도
강조하다:	1 Year Warranty Tool Inspection System , Customized Support Vision Measurement Machine , Wooden Case Packaging VMM Machine

제품 설명

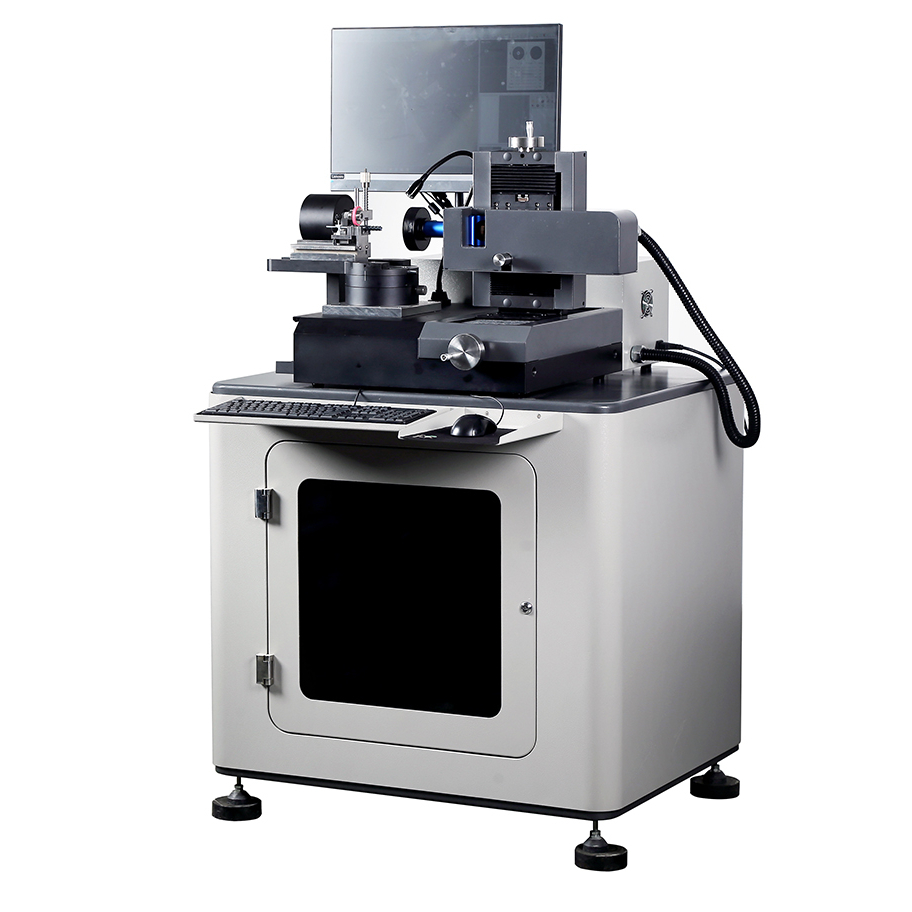

Milling Tool Inspection System - UNIMETRO RANGER600

Product Application

The UNIMETRO RANGER600 Tool Inspection System is a universal measuring machine for drills, milling cutters, and countersinks featuring a flexible illuminating system. Its compact design and stability make it suitable for metrology rooms, receiving inspection, or direct production line use.

Configured with SMARTOOL universal measuring software, the RANGER600 provides comprehensive control of special tool geometries, from simple outer contour checks to complete angle measurements. The system enables a streamlined PUT-MEASURE-ANALYSE process.

Advanced Design Features

Ergonomic design with solid construction for industrial environments
HD image capturing with optional microscope magnification levels
Stable V-block for secure tool holding and alignment
Mechanical fixed measuring angles at 0° and 90° on rotary stage
High-accuracy embedded encoder for precise angle location
Programmable LED ring light with contour and auxiliary lighting
SMARTOOL software with specialized cutting tool measurement functions
Automatic edge detection and CAD comparison capabilities
Results export to Excel or CAD formats
All-in-one PC system for enhanced stability

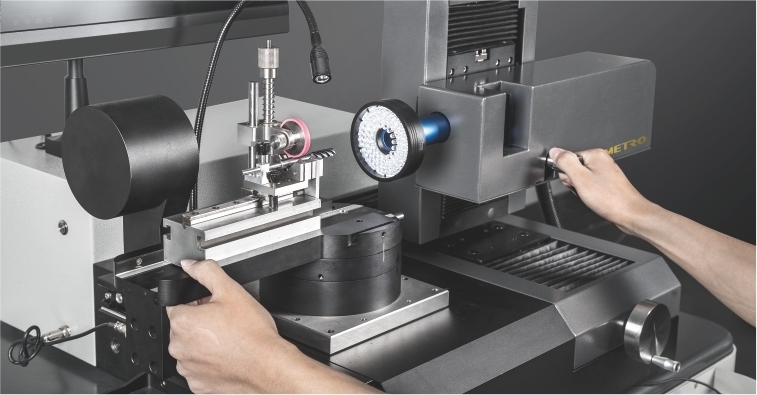

Precision Angle Measurement

The RANGER600's rotary table provides two mechanical fixed angles (0° and 90°) for fast, precise tool positioning. The 0° position enables measurement of tool ends, center shafts, and front angles, while the 90° position facilitates helix angles, axial front angles, and rear angle measurements. Additional angles are available via the embedded encoder with real-time software display.

0° Measurement Position

45° Measurement Position

90° Measurement Position

SMARTOOL Measuring Software Features

Intuitive Operation

High-resolution image display with graphical interface and on-screen function keys for streamlined operation.

Dynamic Real-Time Curve View

Real-time edge detection curve visualization for intuitive analysis during measurement processes.

Fast Angle Measurement

Rotatable reticle with angle display enables quick edge comparison measurements.

CAD Comparison

Import CAD drawings as reference to compare against actual tool geometries for quality evaluation.

Measuring Capabilities

Helix Angle Measurement

Axial Front Angle Measurement

Rear Angle Measurements

Tool End Measurements

Technical Specifications

Parameter	Specification
X axis travel	80mm
Y axis Travel	60mm
Z axis measuring range	60mm
Max tool Diameter	50mm
Max tool length	300mm
Working distance	90mm
Lens	0.7-4.5X dented zoom lens
Camera	2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution	0.0001mm
Magnification	12.6X~79.2X/25.2X~158.4X (Optional)
Field of view	2720mm~4.33.3mm/13.510mm~2.31.6mm (Optional)
Measuring accuracy	X~Y,(2.5+L/100)µm, L is the measured length
PC	ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination	8 sections LED ring light, contour light and flexible auxiliary light
Input format	DXF files
Output format	EXCEL, DXF

Additional Features

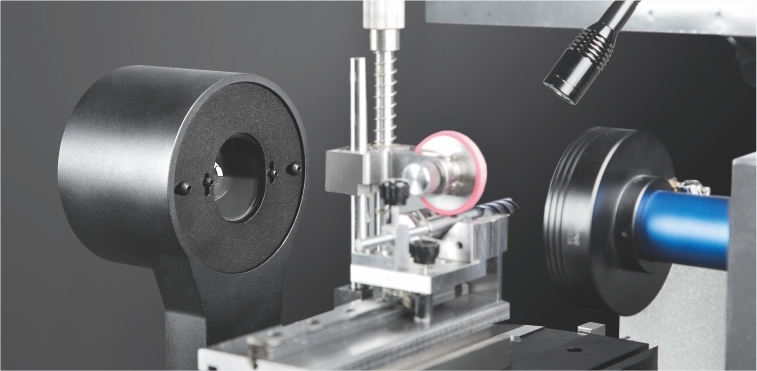

Free Angle Auxiliary Light

Dimmable additional light on flexible arm provides localized image enhancement for precise measurements.

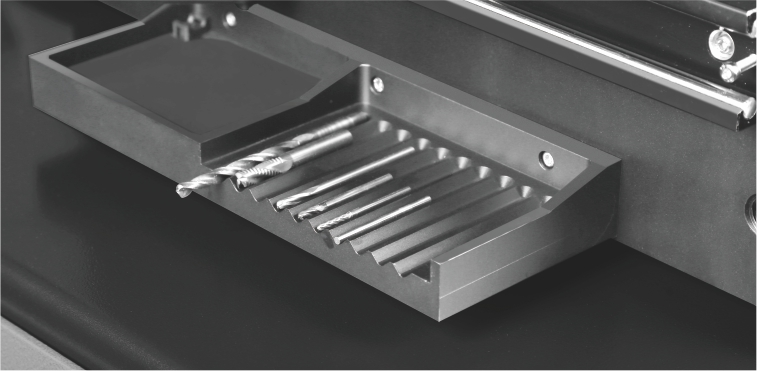

Integrated Tool Holder

Multiple-section tool holder keeps instruments organized and ready for measurement.

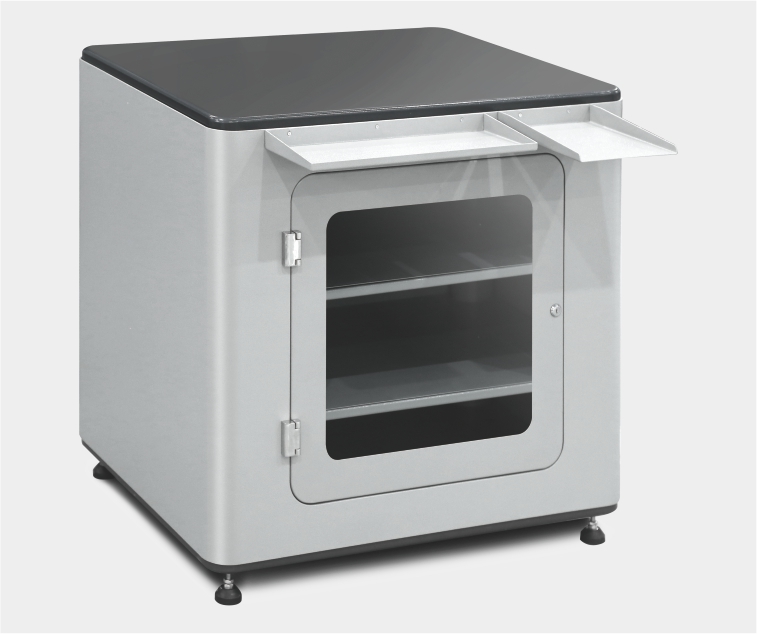

Sturdy Base Table

Solid workstation with practical storage space for materials and accessories.

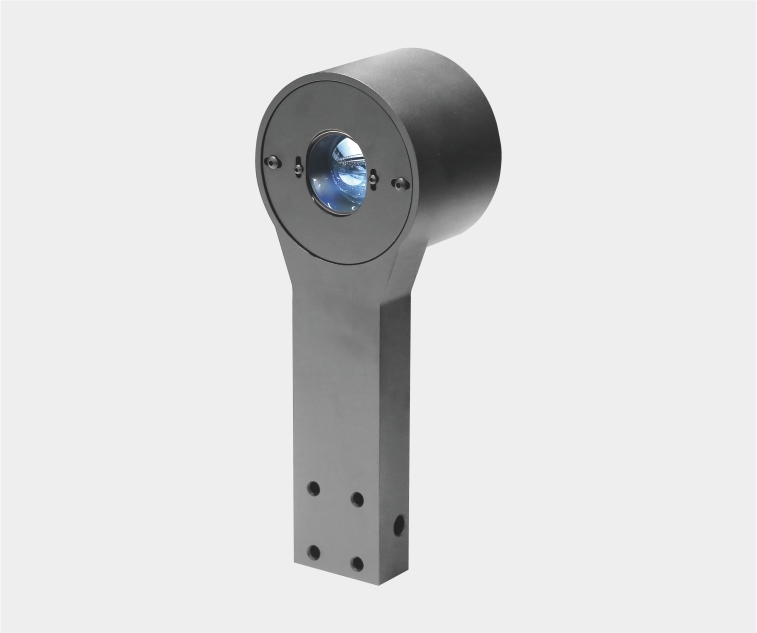

Contour Light Module

Parallel light path contour LED module provides optimal edge visualization when measuring tool contours.

About UNIMETRO

With over 10 years of experience in metrology, UNIMETRO manufactures high-performance measurement products at competitive prices. We welcome global partners and provide comprehensive marketing and technical support.

Our Production Capabilities

Beyond vision measurement machines and CMMs, our production line includes core optical metrology components: VMM controllers, lens systems, cameras, linear scales, and specialized fixtures.

Customer Support

Our specialist team provides flexible measuring solutions with minimal after-sales service requirements, thanks to our stable, modular designs that reduce partner training and maintenance costs.
