| 원래 장소: | 중국 광둥 |
|---|---|
| 브랜드 이름: | UNIMETRO |
| 인증: | CE,ISO |
| 모델 번호: | 에이치피 시리즈 |
| 최소 주문 수량: | 1 세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 나무로 되는 케이스+ 진공 포장 |
| 배달 시간: | 15 ~ 20 일 |
| 지불 조건: | L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram |
| 공급 능력: | 달 당 5 세트 |
| 모델: | HE 시리즈 | 제품명: | 전자동 영상측정기(고정갠트리형) - HP442 |
|---|---|---|---|
| 반복성: | 1.5um | 정확성: | 1.6+L/200um |
| 선형 스케일 해상도: | 00.5mm (0.1mm 선택 사항) | 측정 모드: | 완전 자동 |
| 지원하다: | OEM, ODM, 사용자 정의 | 적용 풍경: | 실험실/산업 |
| 보증: | 12개월 | 무게(kg): | 560 |
| 분노 측정: | 400/400/200 | ||
| 강조하다: | HP Series laser measurement machine,industrial non-contact inspection VMM,auto parts vision measurement machine |
||
HP: High-Precision (High Precision)

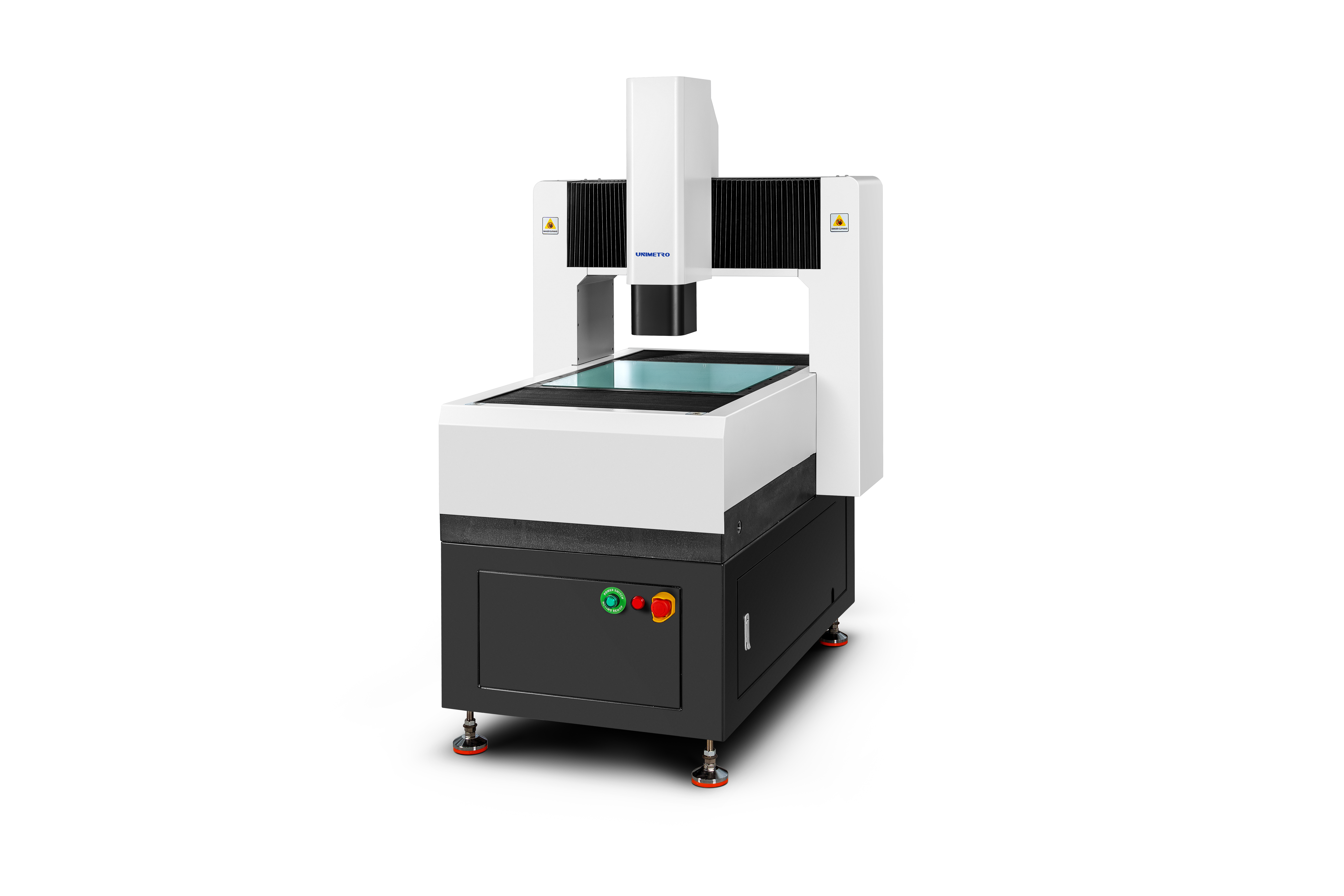

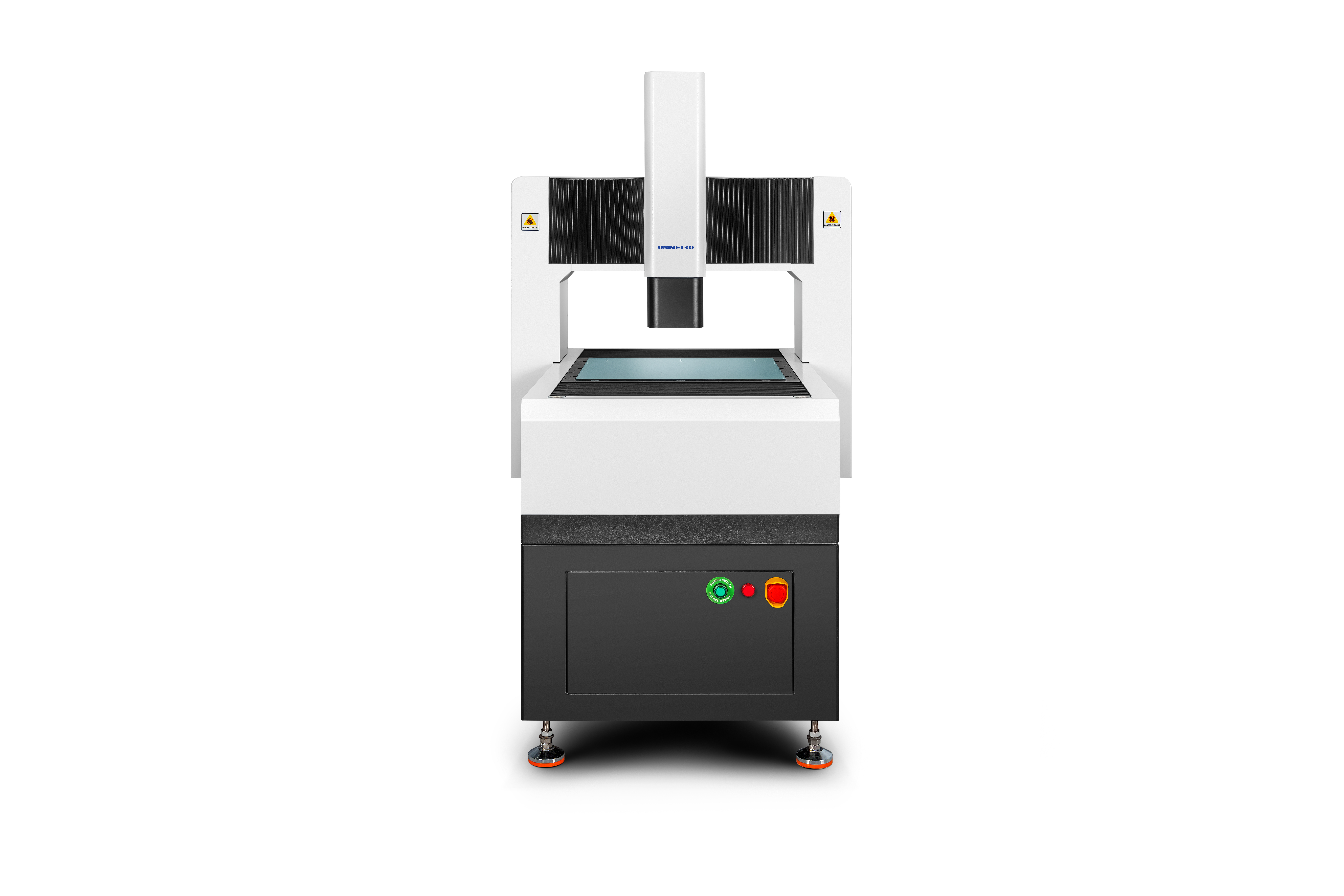

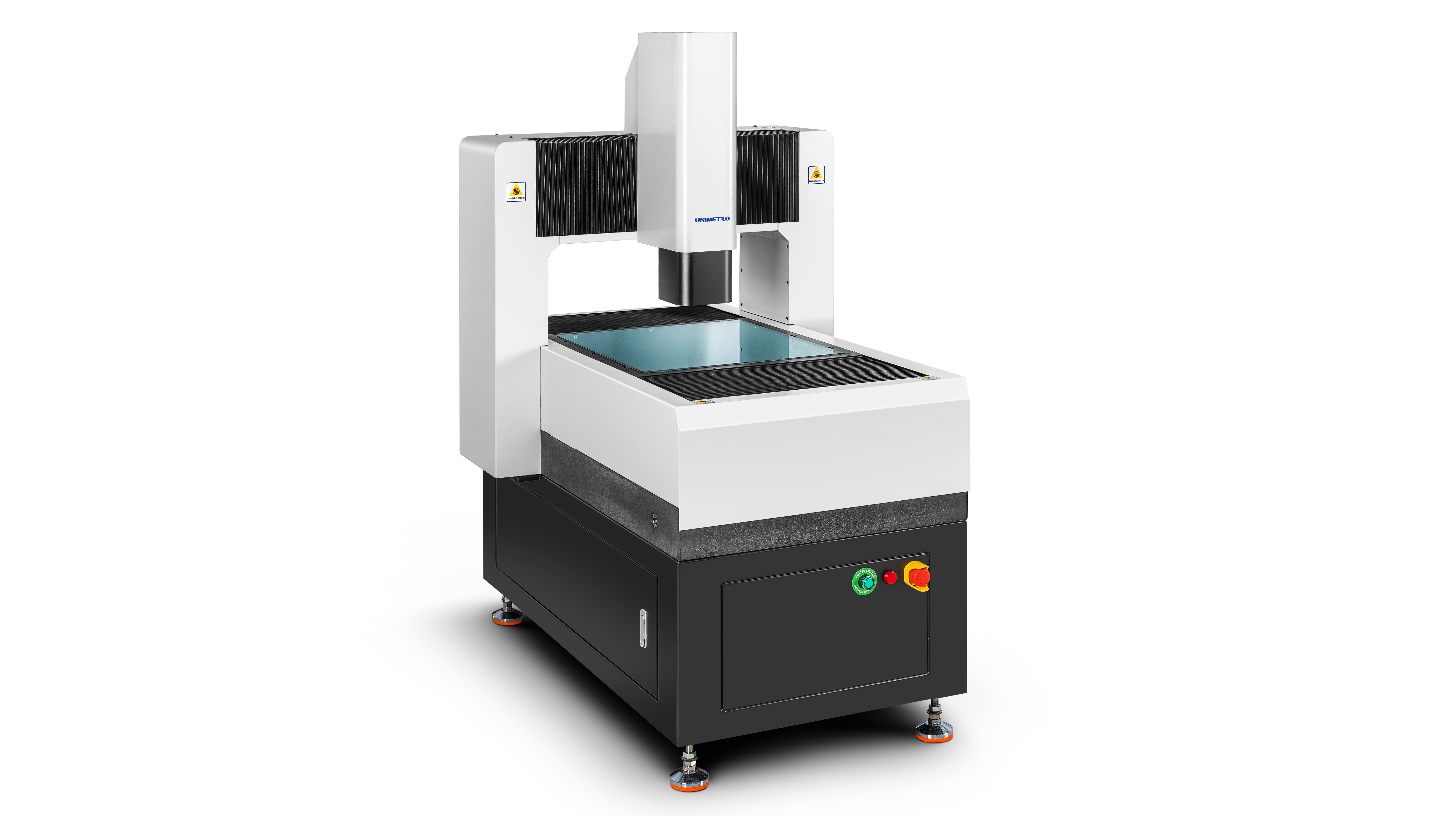

The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.
| Model | HP 442 | HP662 | HP872 |
|---|---|---|---|
| Dimensions (mm) (X x Y x Z) | 920*1200*1600 | 1120*1400*1600 | 1320*1600*1600 |
| Measuring range (mm) (X x Y x Z) | 400*400*200 | 600*600*200 | 800*700*200 |
| Accuracy (um) | 1.6 +L/200 | 1.6 +L/200 | 1.6 +L/200 |
| Repeatability (um) | 1.5 | 1.5 | 1.5 |
| Weight (kg) | 560 | 860 | 1600 |
| Resolution | 0.5μm (0.1um for option) | ||
| Camera | Industrial-grade color CCD camera | ||
| Lens | 1x-10x (Variable magnification) | ||
| Magnification | 20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.) | ||
| Video Magnification | 18~195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data) | ||
| Work Distance | 85mm | ||
| Illumination | Programmable surface light, LED bottom parallel light (optional: coaxial light) | ||
| Drive system | CNC control, linear motor drive; Handle control, mouse/keyboard control | ||
| Linear scale resolution (um) | 0.1um | ||
HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.
