| 원래 장소: | 중국 광둥 |
|---|---|
| 브랜드 이름: | UNIMETRO |
| 인증: | CE,ISO |
| 모델 번호: | SV 시리즈 |
| 최소 주문 수량: | 1 세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 나무로 되는 케이스+ 진공 포장 |
| 배달 시간: | 15 ~ 20 일 |
| 지불 조건: | L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram |
| 공급 능력: | 달 당 5 세트 |
| 모델: | SV 시리즈 | 제품명: | 전자동 비전측정기 - SV3 |
|---|---|---|---|
| 반복성: | 2 음 | 정확성: | 2+L/200um |
| 선형 스케일 해상도: | 00.5mm (0.1mm 선택 사항) | 측정 모드: | 완전 자동 |
| 지원하다: | OEM, ODM, 사용자 정의 | 적용 풍경: | 실험실/산업 |
| 보증: | 12개월 | 무게(kg): | 400 |
| 분노 측정: | 300/300/200 | ||
| 강조하다: | SV Series optical measuring instrument,3-axis auto programming inspection machine,MARB base vision measurement machine |
||

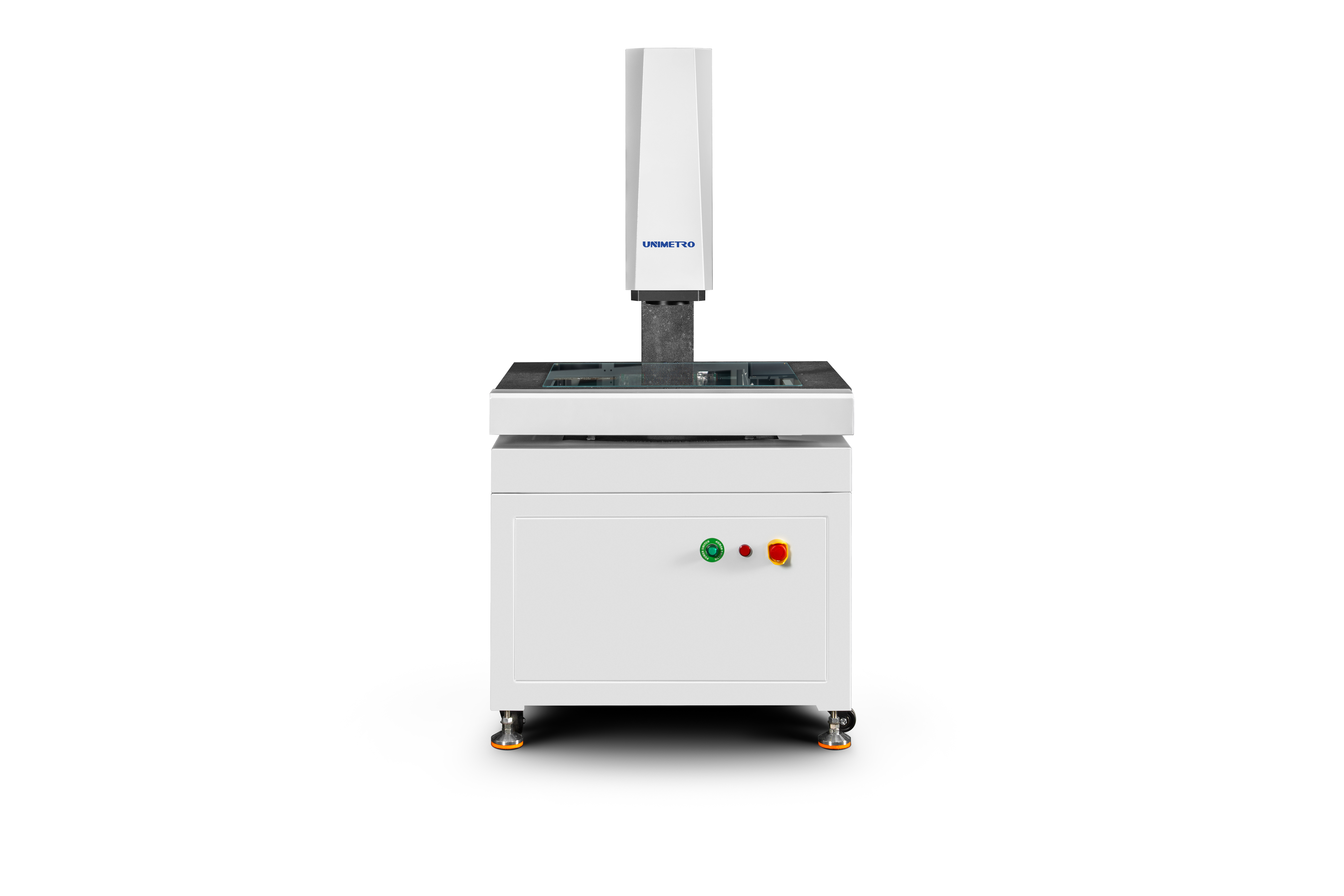

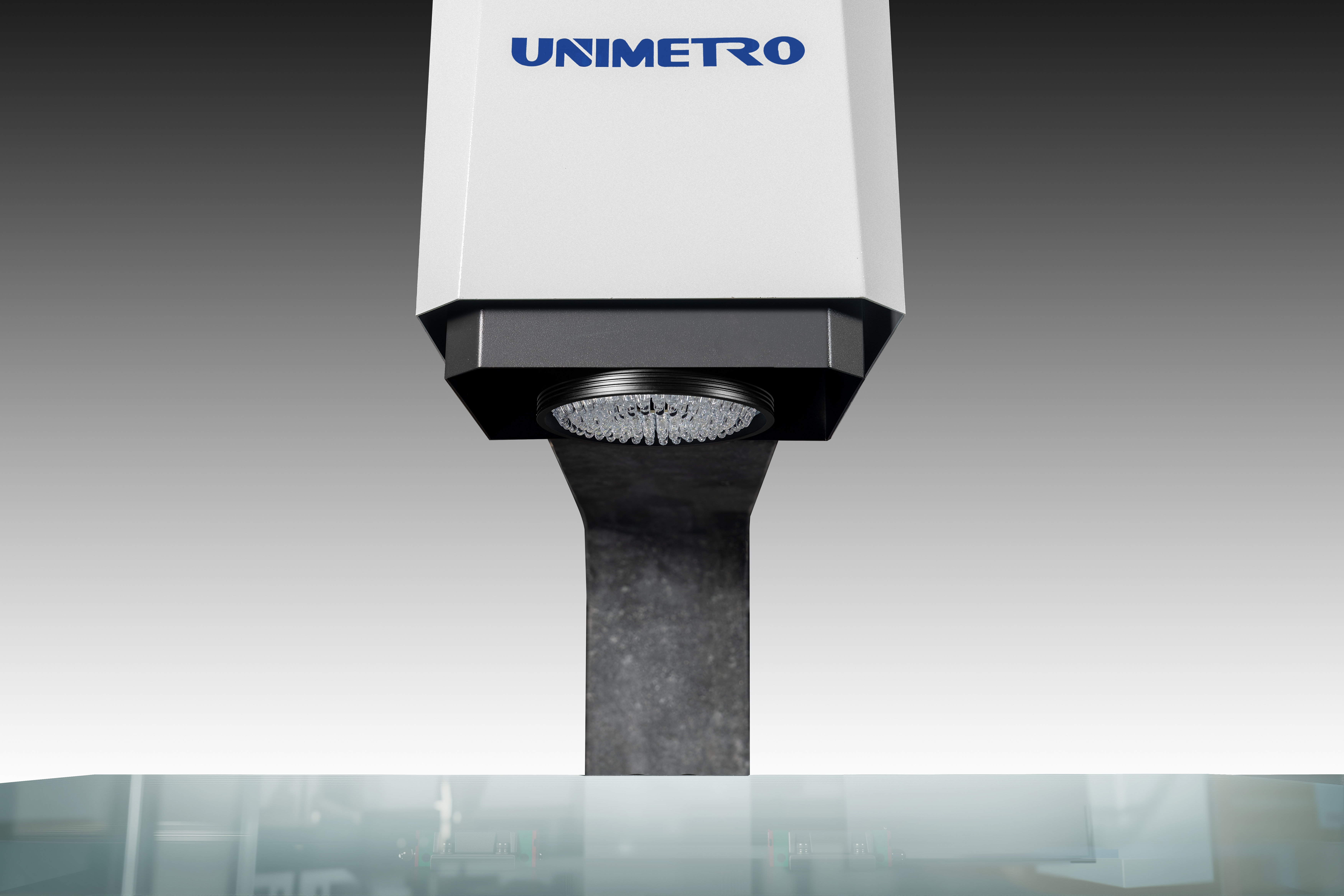

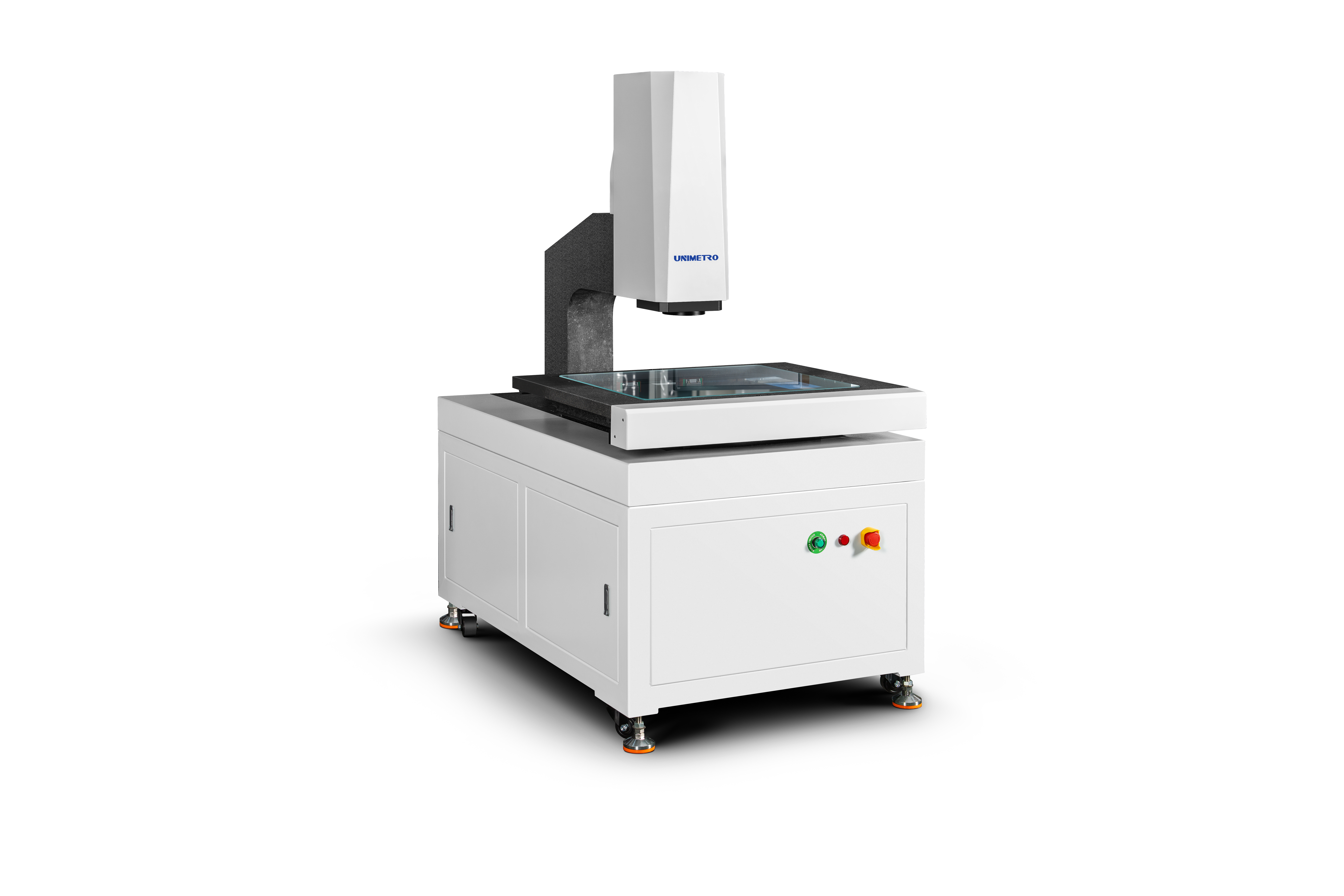

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring Multi-Axis Resolution Base (MARB) and Super Stable Video (SV) technology. This high-configuration system offers superior resolution and faster processing speeds, enabling three-axis fully automatic programmable detection.
By matching the workpiece coordinate system through programming, it automatically executes measurement processes. For repeated measurements of heavy workpieces, it includes memory, learning, and auto-programming functions, facilitating rapid and accurate real-time measurement on-site. The marble construction provides high stability, strong durability, and low maintenance costs, perfectly balancing precision, efficiency, and long-term durability for quality control in large-scale, complex manufacturing industries.
| Model | SV-3 | SV-4 | SV-5 | SV-6 |
|---|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 650/950/1740 | 730/1040/1740 | 790/1130/1760 | 890/1370/1780 |
| Measuring range (mm) (X/Y/Z) | 300×200×200 | 400×300×200 | 500×400×300 | 600×500×200 |
| Accuracy (μm) | 2 + L/200 | 2 + L/200 | 2 + L/200 | 2.5 + L/100 |
| Repeatability (μm) | 2 | 2 | 2.5 | 2.5 |
| Weight (kg) | 400 | 500 | 600 | 700 |
HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and accommodates RENSHAW full series probe brackets, enabling automatic transformation for full-scale measurement on a single device to maximize productivity.
